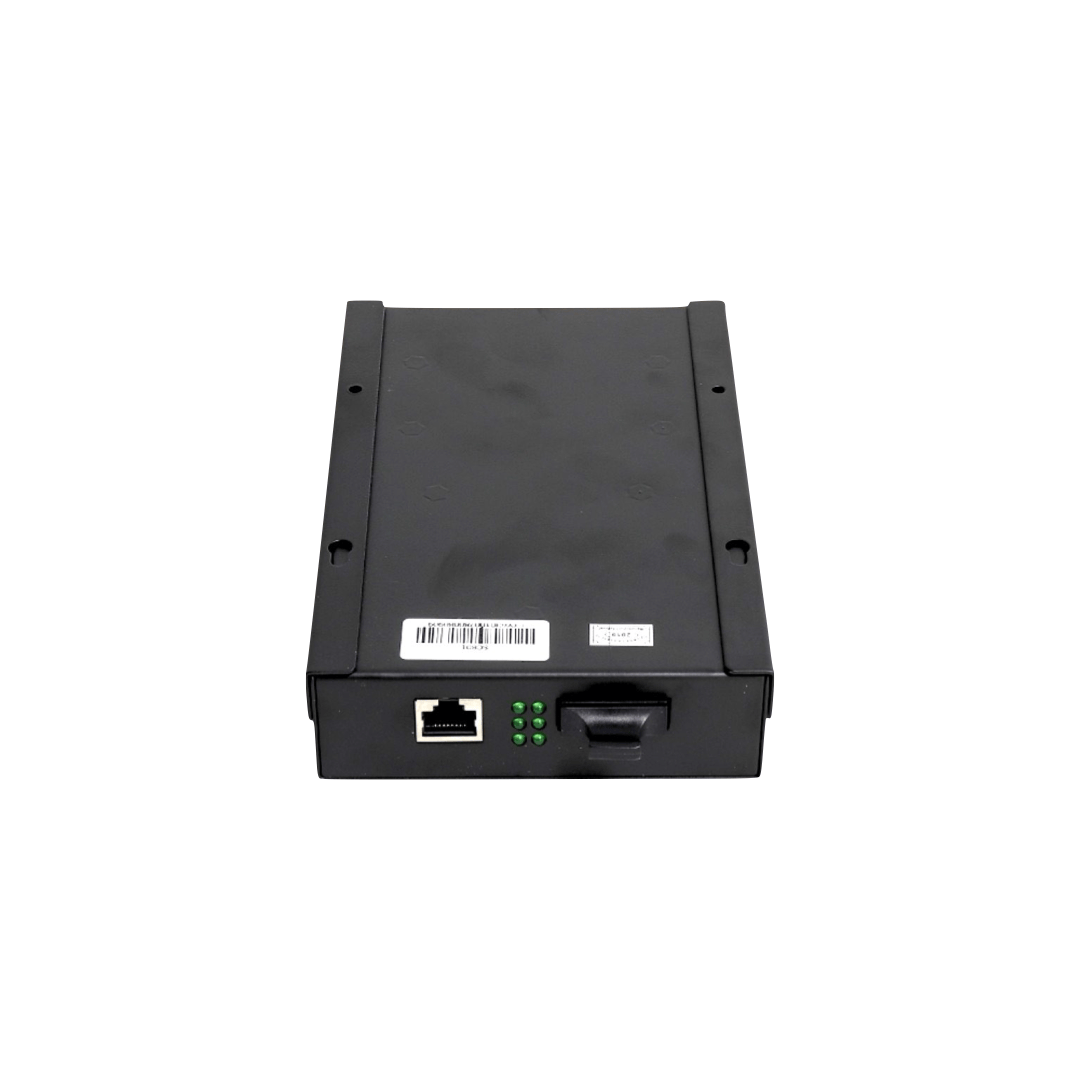

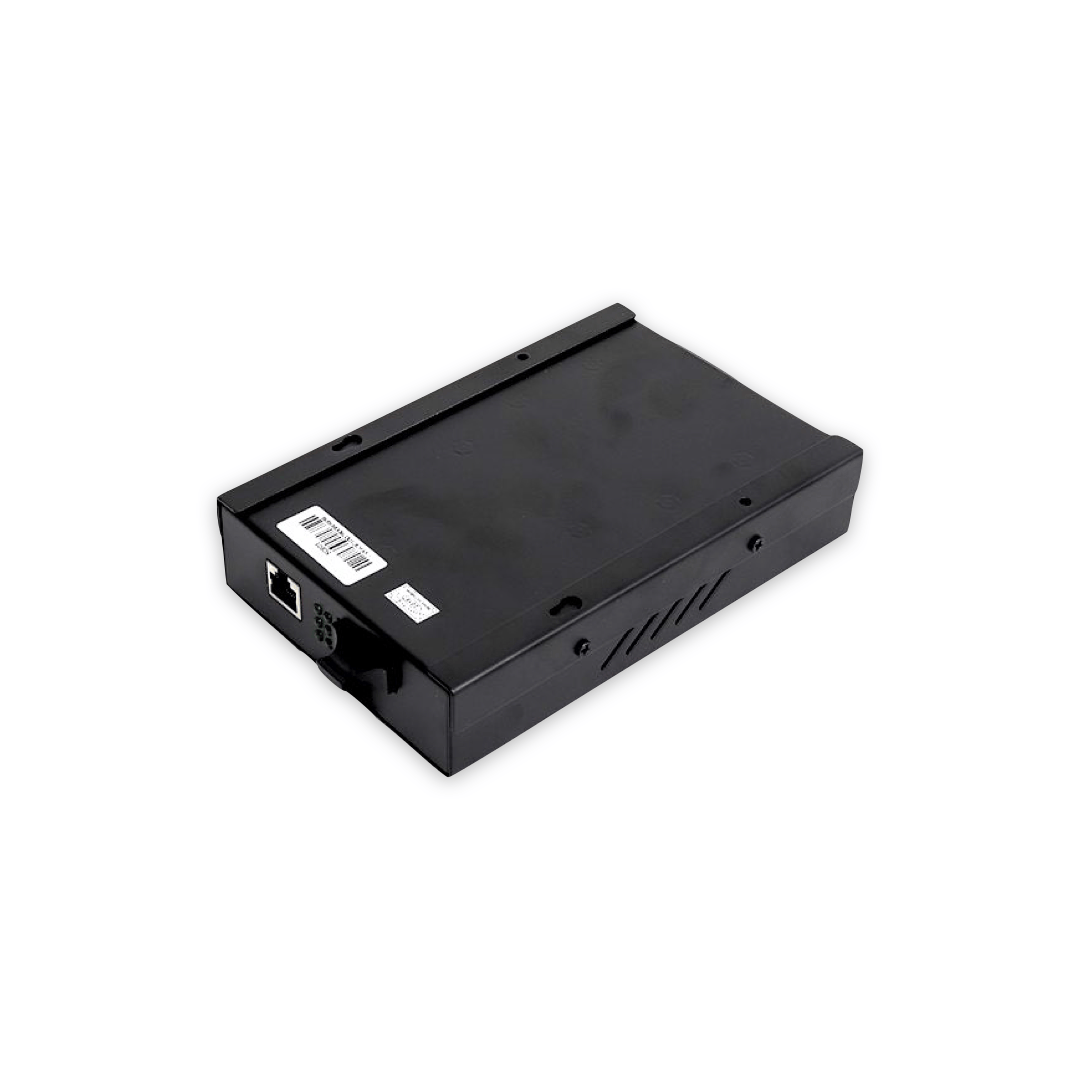

Official Linsn SC801 Single-mode Optical Fiber Converter
Official Linsn SC801 Single-mode Optical Fiber Converter
Official Linsn SC801 Single-mode Optical Fiber Converter
Official Linsn SC801 Single-mode Optical Fiber Converter
  1. Official Linsn SC801 Single-mode Optical Fiber Converter
  2. Official Linsn SC801 Single-mode Optical Fiber Converter
  3. Official Linsn SC801 Single-mode Optical Fiber Converter
  4. Official Linsn SC801 Single-mode Optical Fiber Converter

Official Linsn SC801 Single-mode Optical Fiber Converter

Original price was: $215.00.Current price is: $195.00.

The SC801 is a single-mode optical fiber converter developed by Linsn, which can realize long-distance and stable transmission of signals up to 20 kilometers without being easily disturbed. SC801 is easy to use, and the connection is simple, just connect the sending card and receiving card of the LED display.

Due to a few constraints, we are not able to showcase the pricing of some products, for more information kindly write us at sales@ledadvices.com

or leave us messages on WhatsApp – Glad to hear from you!

Contact Now
Share your love

Description

Introduction

Features

  • Size:167mmX108mmX35mm, Hole diameter:0.35CM
  • Power supply:110V~230V，50Hz/60Hz
  • Data port: International standard network cable connector
  • Optical fiber port: SC Model
  • Single-mode transmission distance: 20KM; Fiber:9/125(transmission distance about 10KM)or 5/125
  • Wavelength of single-mode:1310nm，Light power:-3~-10dBm; Sensitivity:-23dBm
  • Optical Fiber with 2 cores or above

Connection

1. Sending card RL45 output to TX converter
2. TX converter to RX Converter with Optical Fiber
3. RX convert to receiving cardRL45

Specification Download



Additional information

Weight 4 kg
Dimensions 18 × 11 × 8 cm
