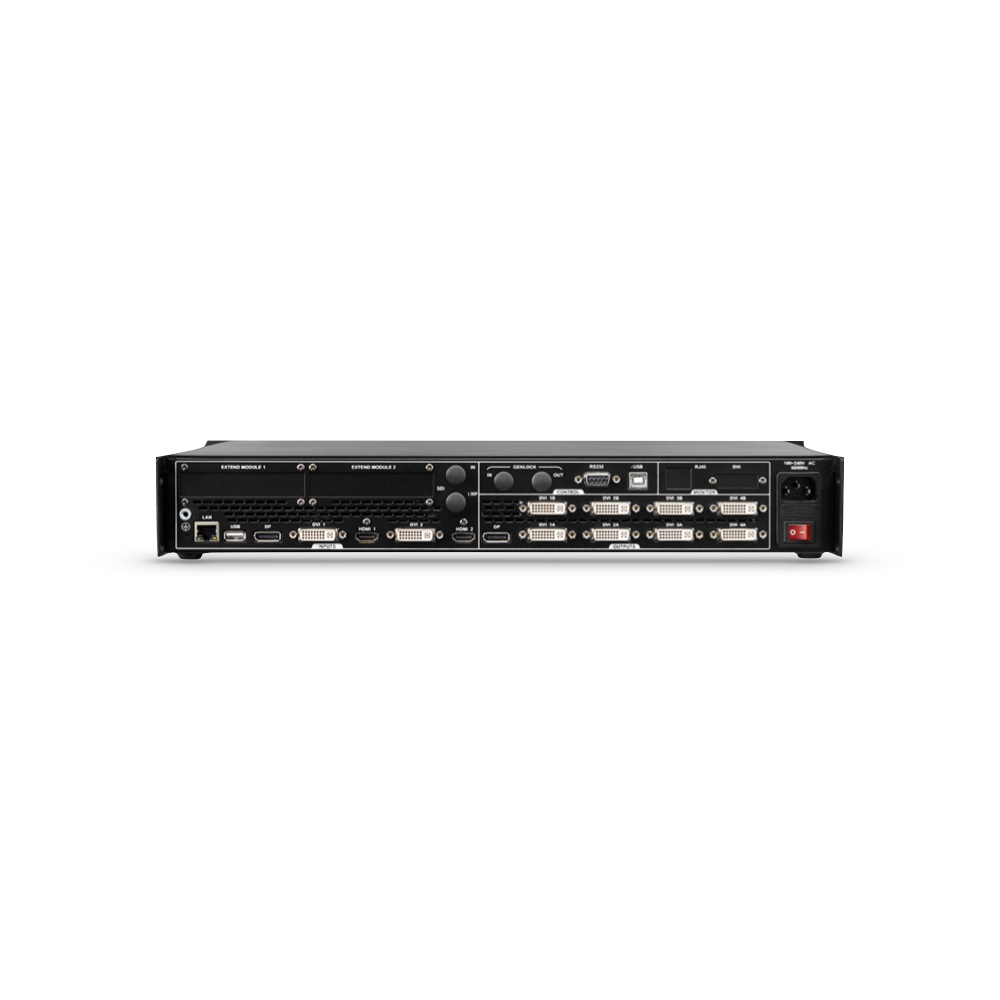

Magnimage LED-760H LED Screen Video Processor

LED-760H is a superior approach to better visual performance for LED walls. It is a 4K x 2K@60Hz video processor for 4-screen splicing. With EDID and customized output management, it delivers a high-quality pixel-to-pixel display via its user-friendly controls. It is ideal for a multi-media hall, multi-purpose room, theater, studio, and showroom.
Supporting all kinds of input ports, it outperforms competitor products in terms of loading capacity and broadband utilizing rate (the up-processes width is 15360, and the refresh rate reaches up to 120Hz. Also, 16 built-in selective resolutions allow the user to scale and match the actual size of LED walls.
Input ports include DVIx2, HDMIx2, and DPx1(4K). For extended inputs, the user can choose 2 2K ports from VGA, DVI, and SDI or 1 4K port from DP1.1 and HDMI1.4.
It accepts network linking, USB linking, or RS232 linking for different control demands.

Features:

• 4 screens splicing in 1 processor: 8DVI output ports are divided into 4 groups for horizontal splicing, vertical splicing, same size splicing, and different size splicing. A single unit up-loads 8,000,000 pixels and accepts splicing for 4 screens. Can do horizontal/ vertical, equal 1 unequal splicing.
• 4 windows output: On one-splicing mode, each output is capable of displaying 4 layers with any size or position.
• Multiple cascades: Machines can be cascaded to perform ultra-wide displays.
• Built-in Input Matrix for Seamless Switching between 8 inputs.
• Logo saving
• Image freezing
• Preset saving & loading
• Internal graphic card for testing
• Accurate brightness control and high grey level optimize screen effect.
• Multiple input ports: DVI x 2, HDMI x 2, DP x 1 (4K x 1K), 2 extended 2K signals, Input signal source (VGA DVI SDI), or one 4K input signal (can choose DP1.1 HDMI1.4).
• EDID management & customize output resolution, including DP, DVI, HDMI, and VGA.
• Rotary output: Splicing after rotary output.
• DP LOOP: 1DP LOOP (for any input signal).
• Time task manager.
• Preview switching.
• Customize output resolution.
• Image crop
• Built-in graphic card for testing.
• Support computer host control.
• USB upgrade
• Serial port for future development.
• Low latency (16ms@60HZ)
