Magnimage LED-550D Series LED Screen Video Processor

Description

LED-550D series products are the video processor developed for the large screen display system, adopted the top image processing chips, internal 12 bits processing, with clearer images and richer colors. Advanced alternate motion picture processing technology, to remove video motion tail or jagged, for the normal PAL/NTSC video, output image will be clearer, for the HD 1080i signal, output image details will be rich, full color and image quality is in the leading level. Advanced image scaling technology, supports user-defined output resolution, a single unit can support horizontal resolution of 3840 at maximum, vertical resolution of 1920 at maximum, refresh frequency rate 120Hz, can upgrade the output signal bandwidth utilization greatly; furthermore, also can use the traditional standard output resolution, then scaling the output image by pixel to pixel according to the real size of the LED screen. Accurate dual picture input image intercepting function can realize the pixel-to-pixel display and material fusion. Intellectualized large-size LED screen seamless splicing technique, the user just needs to have simple setting, they could realize that to send card picture splicing, can support 24576×24576 lattice LED screen; Unique synchronized moving technology, ensure high-speed motion picture fluently without tail or derangements. Perfect video image input port, including 2×VGA, 1×DP, 1×DVI (can be extended for 2 DVI simultaneous input), 1×HDMI 、2×video (PAL/NTSC), 1×SDI (optional), support full HD signal input, can be connected with various audio and video equipment. Support seamless switch between different input signal sources and picture-in-picture function. The whole unit is with pure hardware framework, steady and reliable.

Features:

• Customized output resolution
• Seamless splicing
• Seamless switching, up to 20 switching effect
• Fade in/fade out
• Dual image
• Dual channel image crop
• Test overlay
• Image freeze
• DVI loop
• Support USB disk play (MOV. MP4, MKV. 3GP. AVI)
• Image size, position any adjustme
• Save and load mode
• Customized DVI input resolution
• Various test graphic cards
• Accurate brightness control
• Hot backup

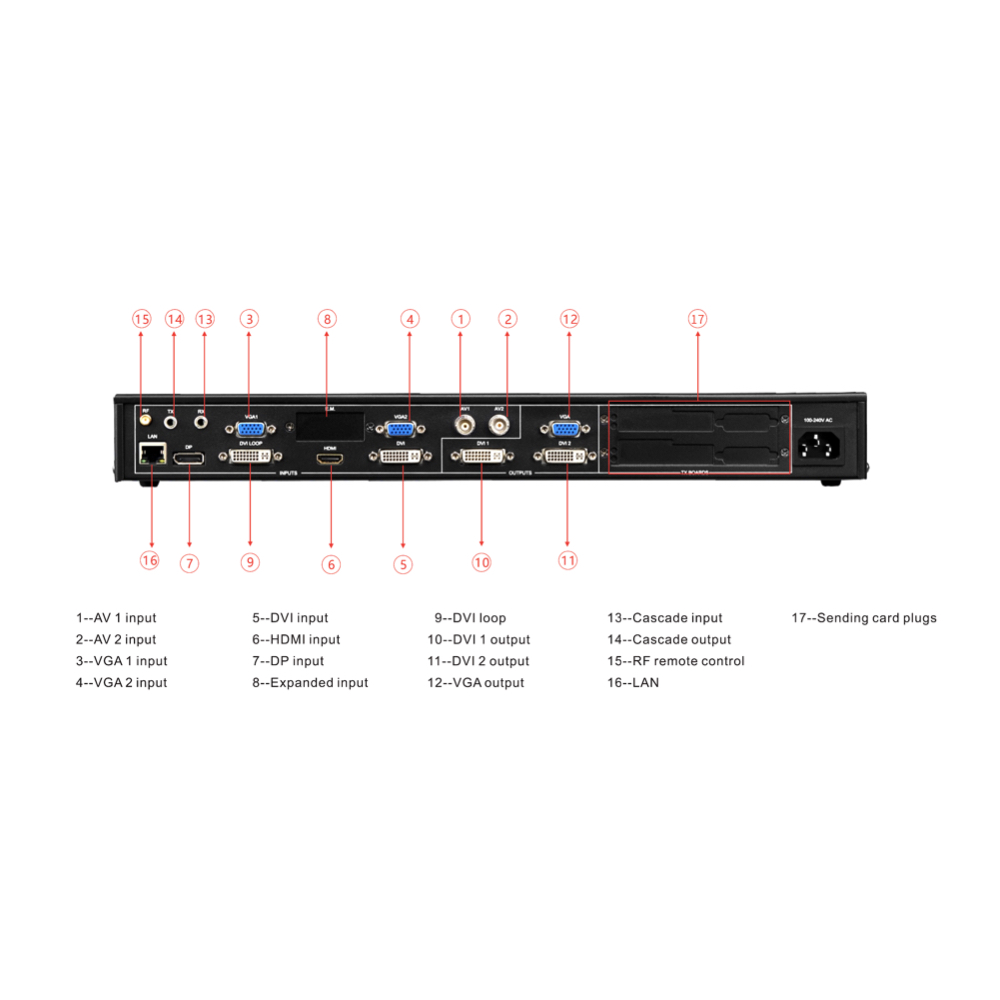

• 7 inputs (2 AV,2VGA, 1DVI, 1HDMI, 1DP)
• Image enhancement
• 1 expanded input (VGA or DVI or SDI)
• Upper computer software control
• Support DP input
