Colorlight Z5 LED Video Controller

Description

Colorlight Z5, a new generation of professional LED video controller, is designed specially to meet the ultra-low latency display, HDR and wide color gamut needs of live event, broadcast, television, filming and other scenarios, where real-time, low-latency processing and color fidelity is required for Ultra HD image and LED display control. Z5 includes features providing excellent visual effect for user.

Features:

Input

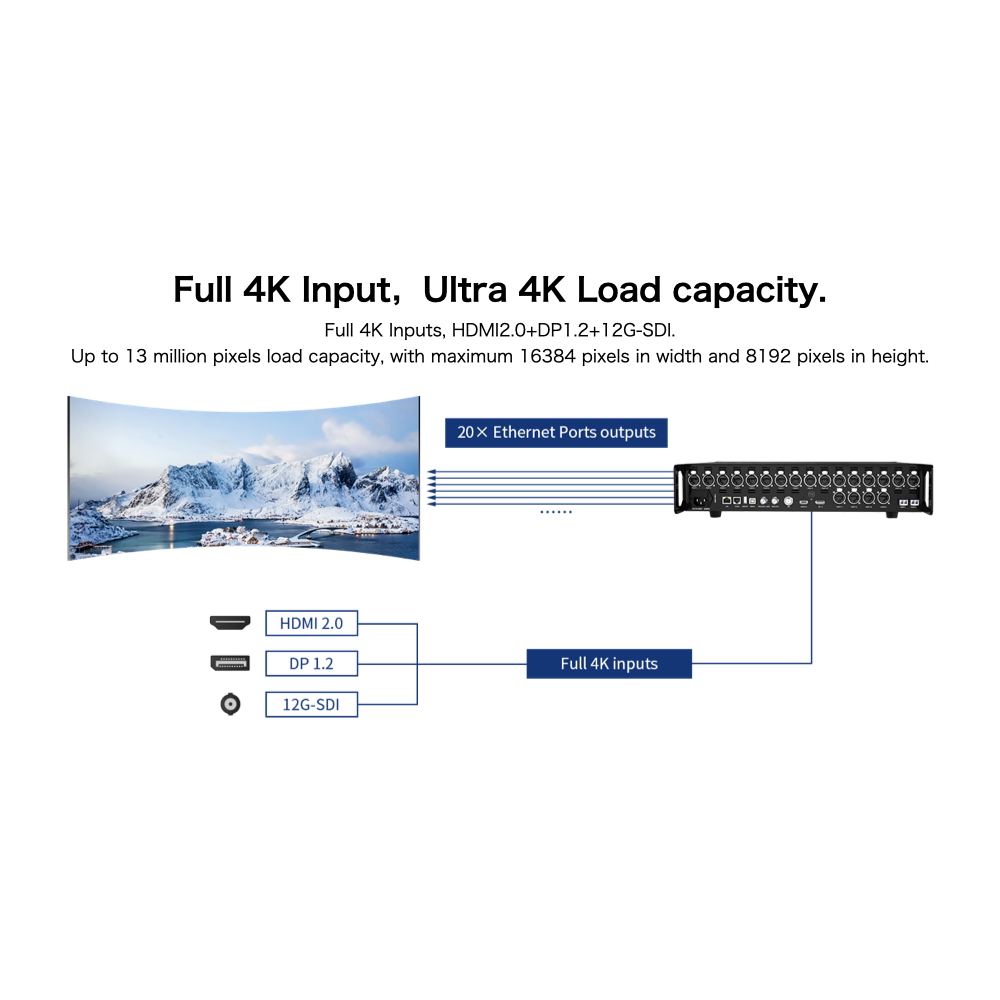

• Full 4K inputs: HDMI2.0, DP1.2, 12G-SDI.
• Single port supports up to 4096 X2160@60Hz.
• Support 8bit / 10bit video signal input.
• Support HDCP1.4/HDCP2.2.
• Support input frame rate from 23.98Hz to 240Hz.

Output

• Maximum capacity of 13.1 million pixels, with maximum 16384 pixels in width and maximum 8192 pixels in height.

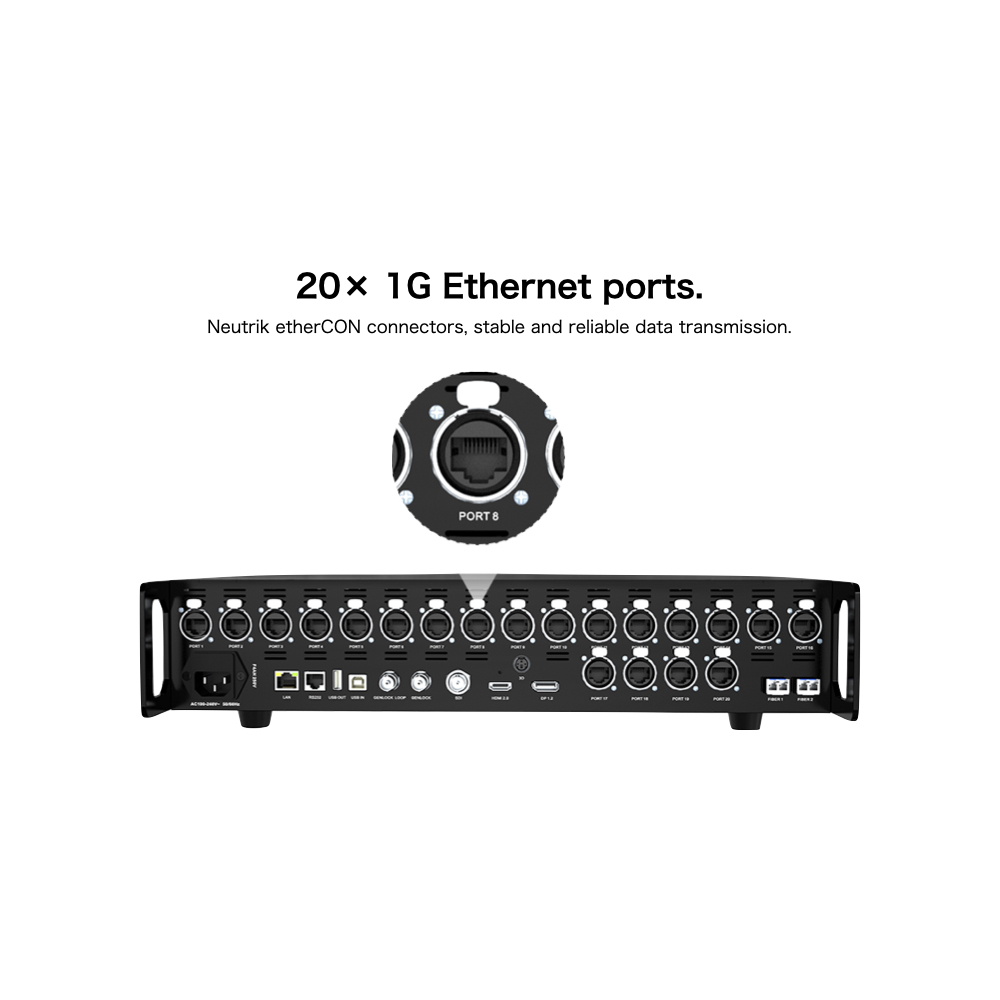

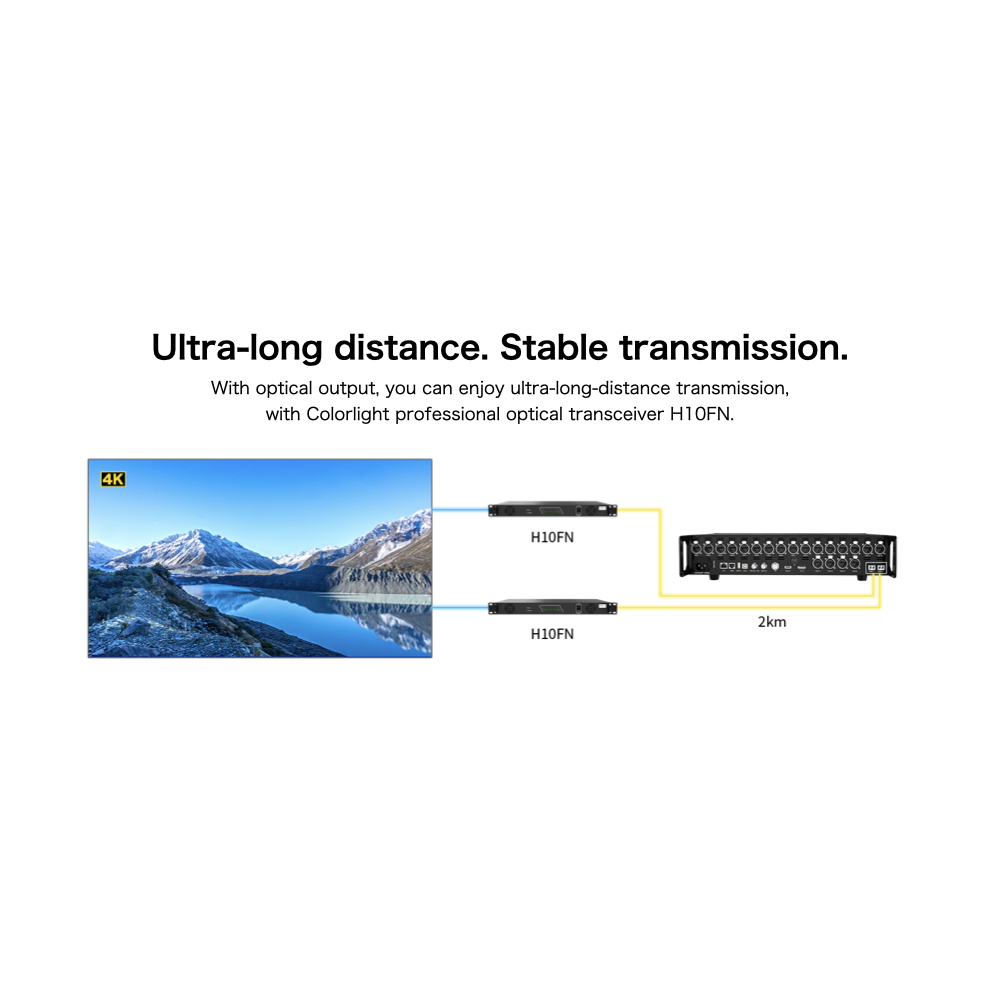

• 20-channel Gigabit Ethernet port output; 2-channel 10 Gigabit fiber port output.
• Support output frame rate of 23.98Hz to 240Hz.
• Support both Ethernet port redundancy and controller redundancy.

Video processing

• Video cropping, broadcasting level switching and scaling.

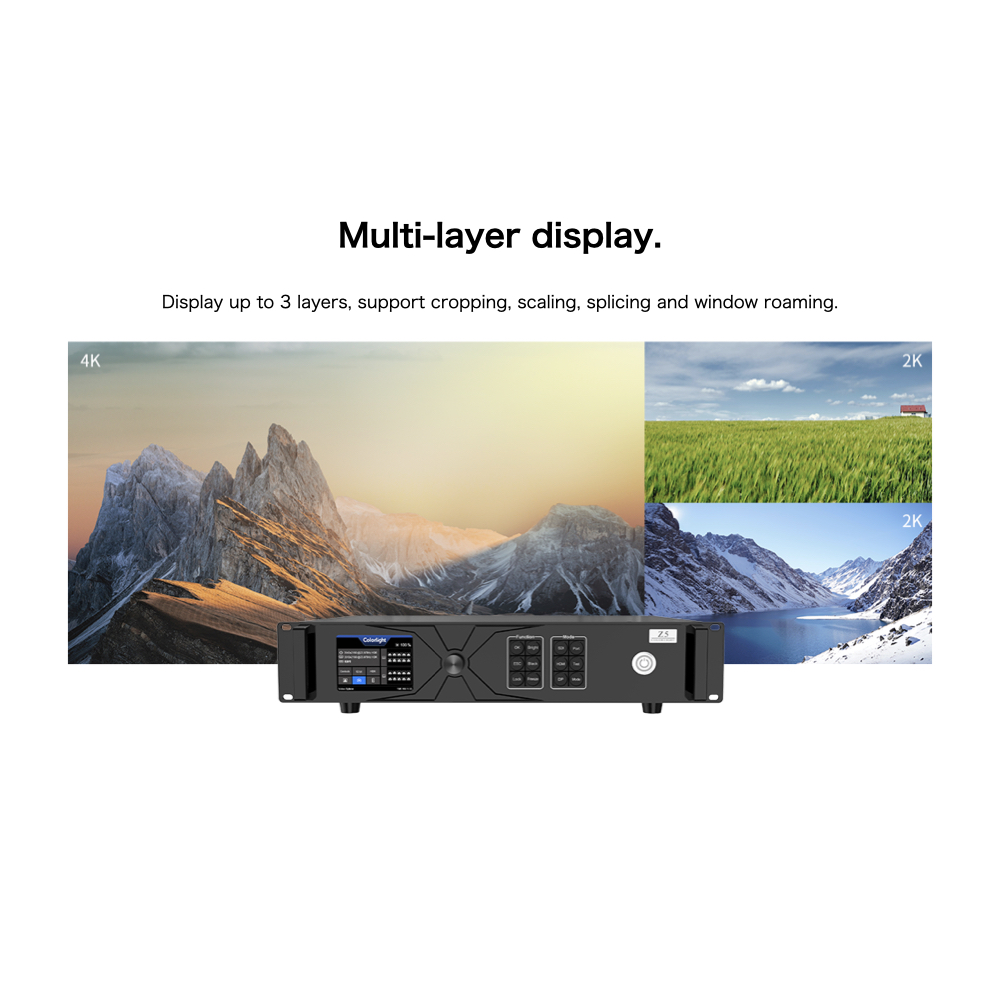

• Up to 3-window display, support 1-channnel 4K and 2-channel HD signal display.
• Low latency, minimum one frame delay.
• HDR10 / HLG display.

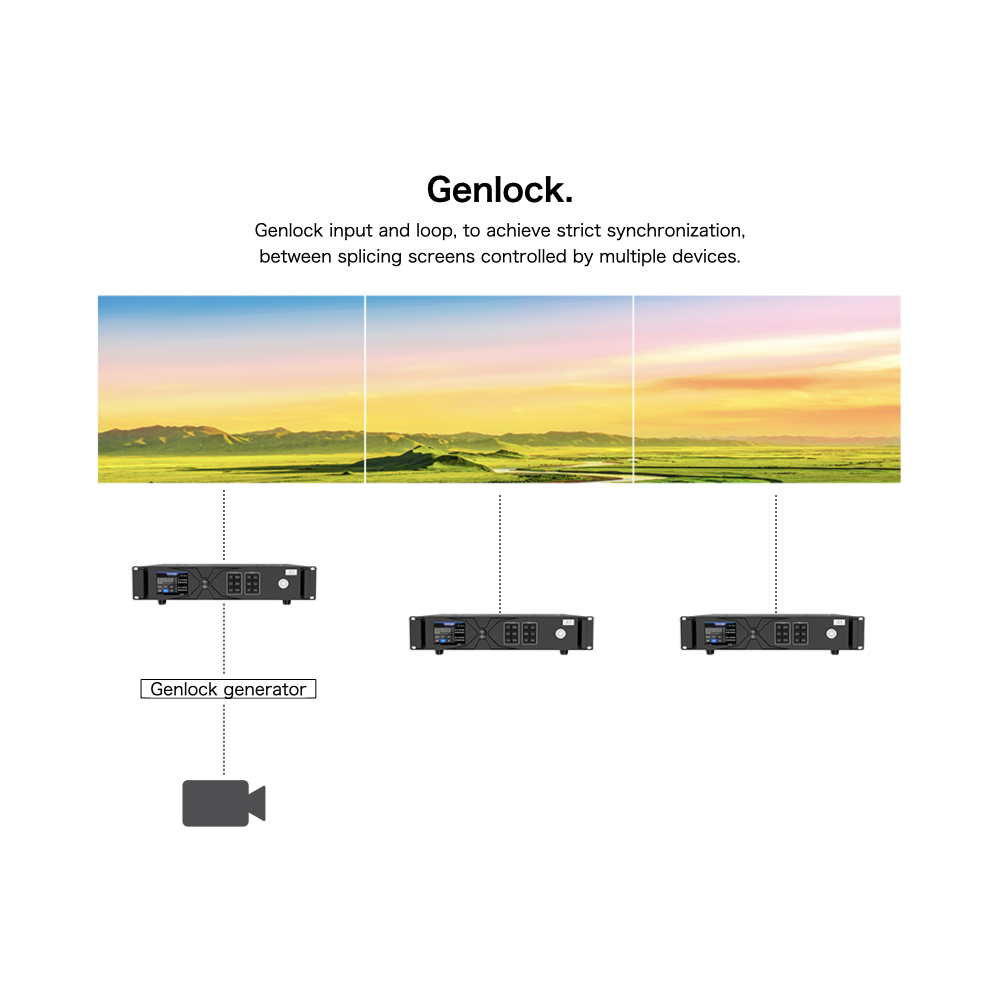

• Genlock function.

Color adjustment

• Picture adjustment for hue, saturation, contrast, and brightness compensation.
• Brightness adjustment, support network port grouping brightness adjustment.
• Color temperature adjustment with precision and GB independent adjustment.

Control

• USB port for control and cascading.
• RS232 port.

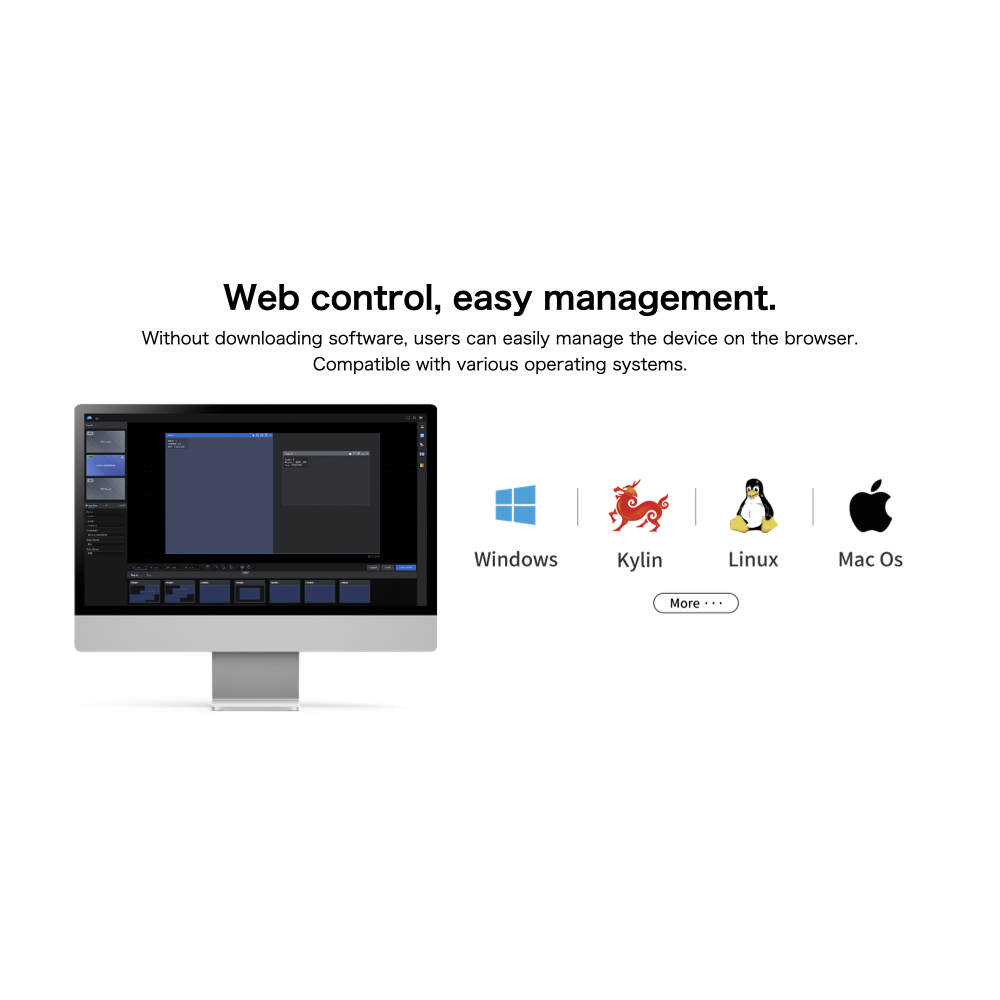

• LAN port for TCP/IP control.

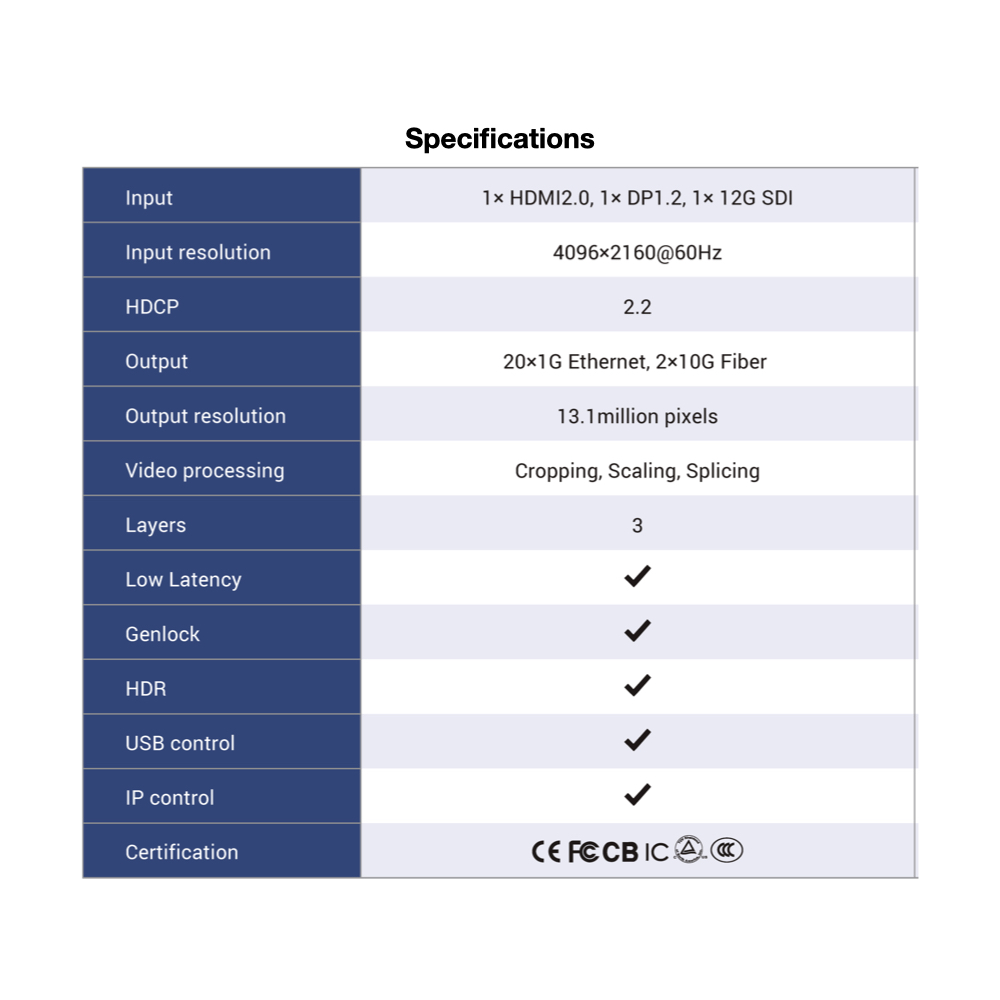

Specification Download

Additional information
