8K DP1.4 To Optical Fiber Converter

DP optical RX & TX set transmits high-definition video signal through optical fiber for a long distance and supports serial port data RS232 and bidirectional infrared transmission, which can adapt to many complex application environments. The device adopts the most advanced video processing chip and CWDM wavelength division multiplexing technology to make the signal transmission more smooth and more stable. It is a reliable, high-performance, and efficient DP signal extension mode. This product is a real non-compression transmission product, the highest resolution can reach 7680/4320@60 HZ.

It is widely used in exhibitions, rail transit, radio and television, video conferencing, medical teaching, education recording, security monitoring, and other high-demand video industries.

Features:

• Transmission distance standard 300 Meters, single mode si fiber or OM3, LC optical port
• DP1.4 protocol version supported
• Support for bidirectional infrared transmission
• A resolution of up to 4 K@120HZ&7680*4320@60HZ, downwards compatible
• Support one-way independent forward analog stereo audio signal transmission
• Support serial data two-way transmission, adaptive baud rate
• Built-in ESD electrostatic protection circuits can effectively prevent electrostatic damage

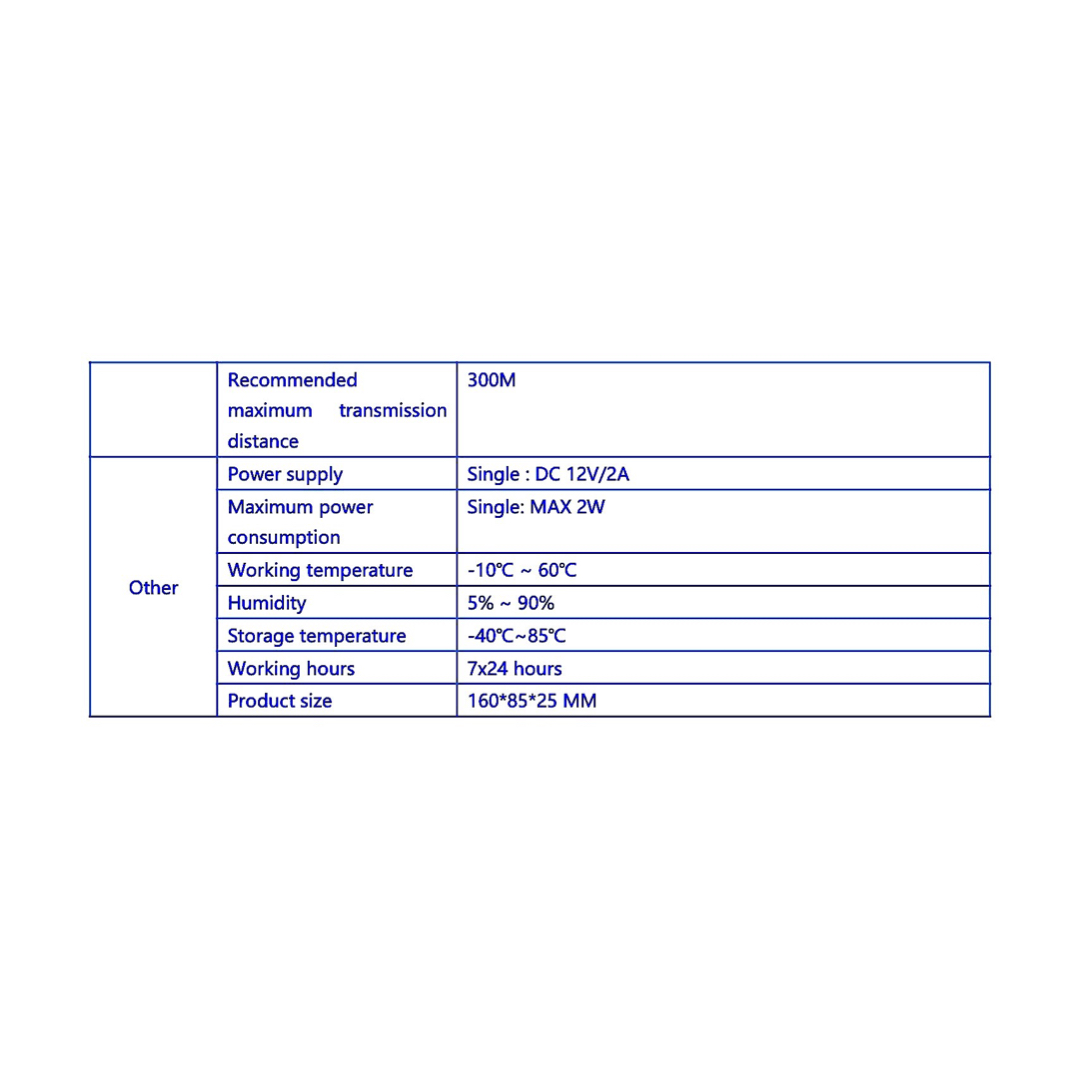

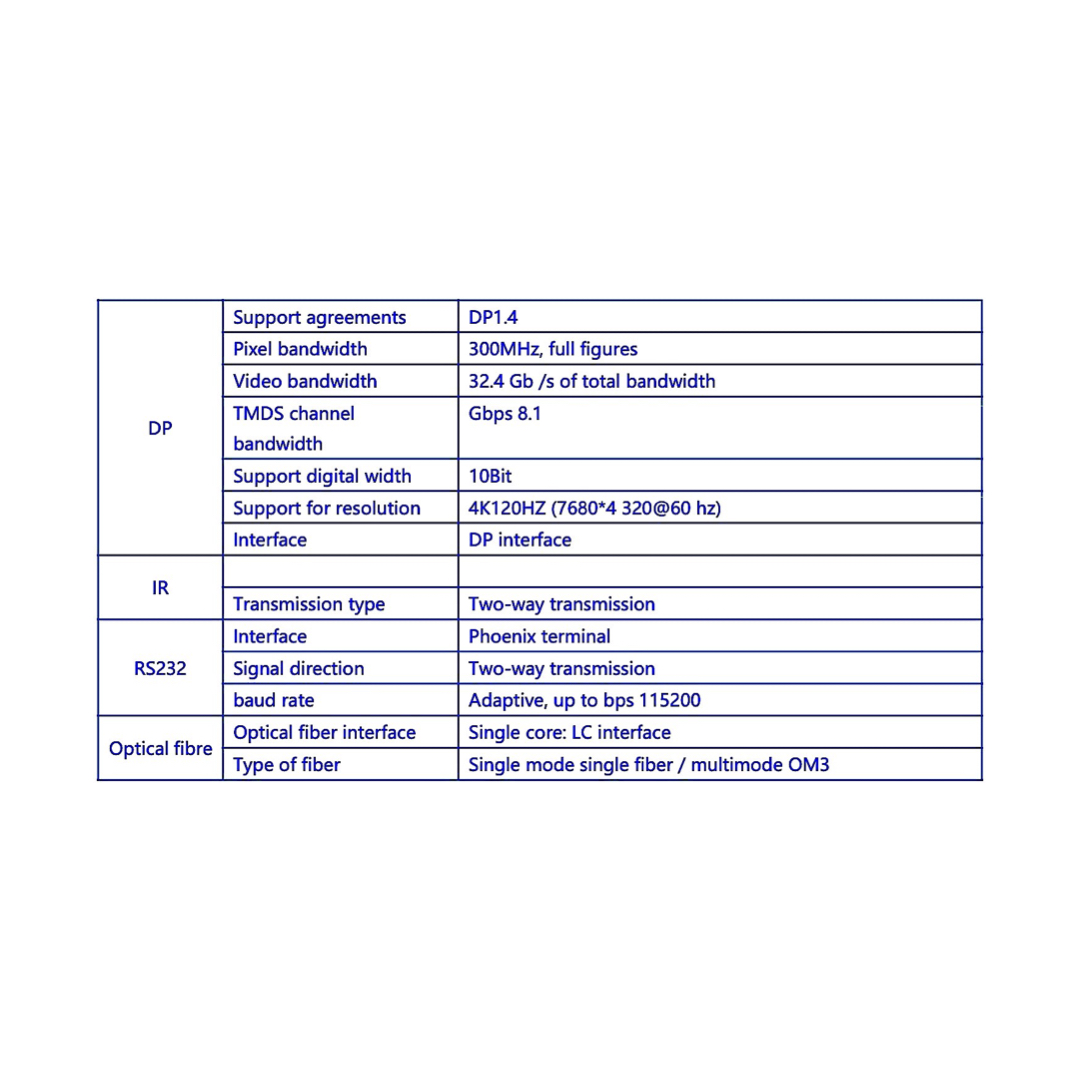

Specification Download
