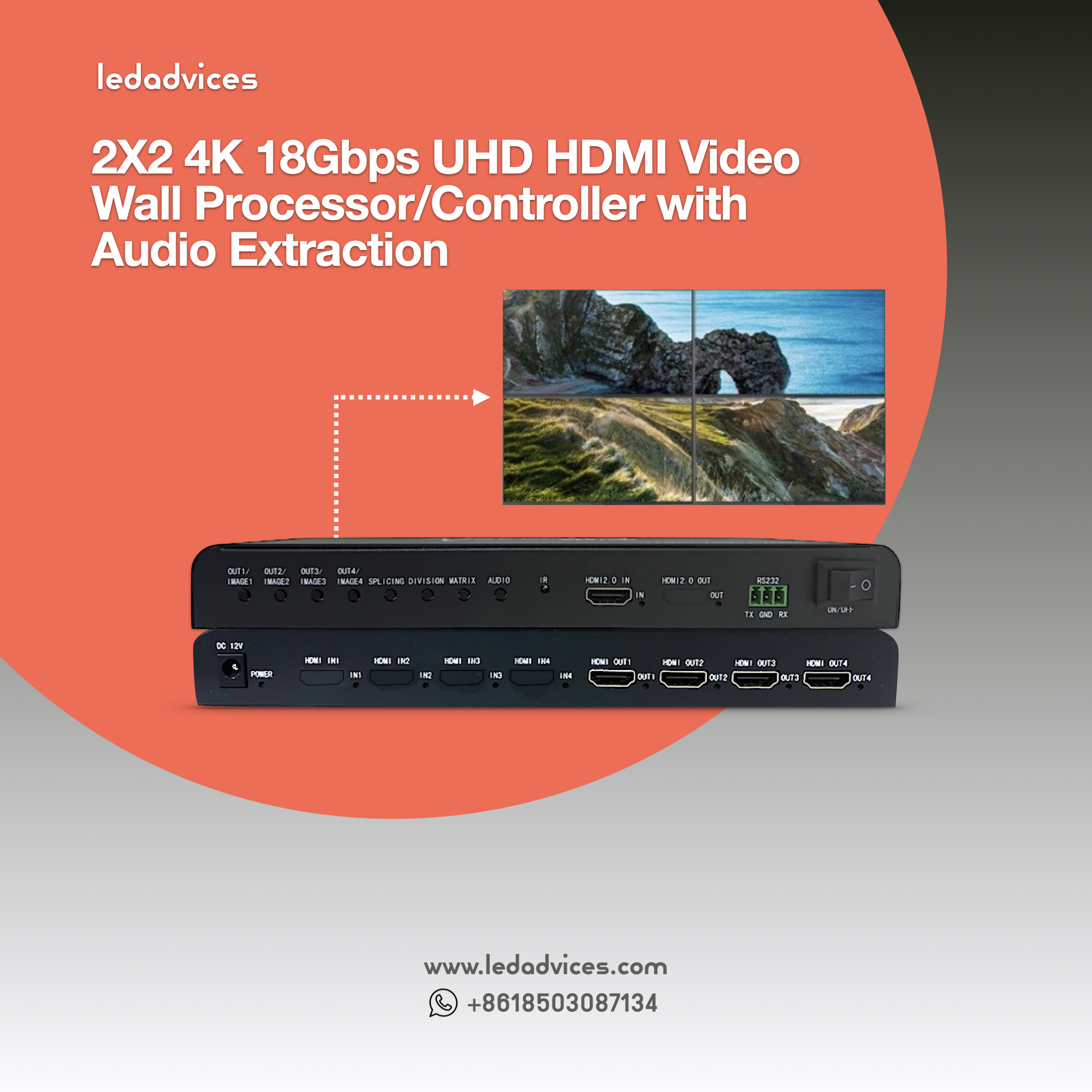

2X2 4K 18Gbps UHD HDMI Video Wall Processor/Controller with Audio Extraction

BIT-VWC-4K60-104 is a high-performance image splicer. The product has a high-definition processing chip, supports 4K60 signal input and 1080P signal output, and adopts HDMI input interface and HDMI output interface. It is suitable for high-resolution desktop applications, large screen walls, engineering display applications, large advertising walls, LCD multi-screens, etc.

• One HDMI input
• Input resolution supports 1920×1080@30/60Hz 3840×2160@30/60Hz
• Factory default resolution: 3840×2160@30Hz
• The highest video pixel frequency of the input interface is 600MHz
• Four HDMI outputs
• The output resolution supports 1920×1080@60Hz.
• The highest video pixel frequency of the output interface is 165MHz
• Output distance 15 meters

Product Features:

• Input supports HDMI 2.0, HDCP 1.4;
• Support any splicing mode below four screens;
• Supports arbitrary output 180-degree rotation and overall brightness adjustment.
• Pure hardware design, plug and play, without any software.
• Seamless switch splicing mode, button control, remote control.
• Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation are adopted, no external heat dissipation measures are required, and the reliability is extremely high.

Specification Download
